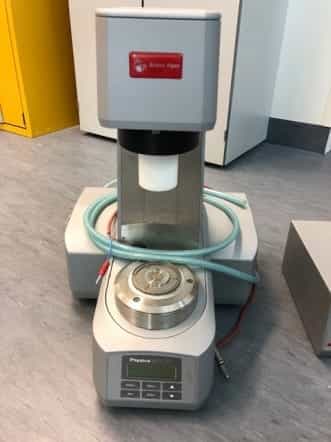

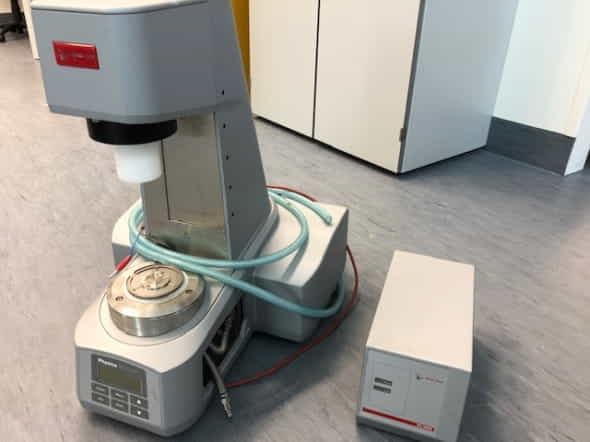

Anton Paar MCR 301 Rheometer

Specification
rheometer type & supplier: stress-controlled rotational rheometer MCR 301 (Anton Paar)
frequency range: 10^-5 – 10² Hz
temperature range:     -40 – 200°C ± 0.01°C (Peltier-control)
geometries

    various geometries are available:
    cone-plate (CP50): R = 25 mm; α=0.991°,sample volume: 0.6 ml
    plate-plate (PP25): R = 12.5 mm, sample volume for 1mm gap: 0.5 ml
    coaxial cylinder (CC27) :gap width: 1.128 mm, sample volume:
    coaxial double gap (DG26.7): gap width: 0.42 mm and 0.46 mm; sample volume: 3.8 ml; for low-viscosity samples (0.4 mPas < η < 200 mPas)

shear rate range    10^-5 – 10⁴ s^-1
