Bio-Rad GelAir Drying System

Bio-Rad GelAir Drying System

The GelAir drying system is perfect for drying polyacrylamide and agarose gels.
Dried between two sheets of cellophane, the gels come out completely clear with a glossy finish,
ideal for densitometry, photodocumentation, autoradiography, overheads, and long-term storage.

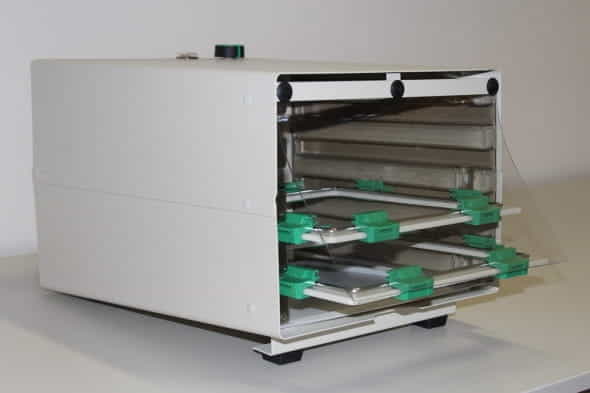

The heated drying chamber works like a convection oven to dry mini gels in 45 minutes or
20×20 cm gels in 60 minutes, rivaling the speed of conventional gel dryers that require a vacuum pump.
Drying times may vary depending on percentage and thickness of the gel.
The dryer holds up to four drying frames at once.
For drying polyacrylamide and agarose gels.

Timer control : 0–3 hr, fully adjustable
Function modes : Fan only; fan and heat; off
Dryer capacity : 4 shelves, each accommodating 1 drying frame
Dimensions (WxDxH) : 27x43x30 cm
Weight : 8 kg

GelAir Drying Frames
Inner dimensions : 20×20 cm
Drying frame  Molded polycarbonate bottom frame, stainless-steel top frame
Clamps  Molded polysulfone, 8 clamps per drying frame
Gel capacity : 4 mini (8×7 cm) gels, 2 Criterion™ (13.3×8.7 cm) gels, 1 large (20×20 cm) gel (per frame)

This system includes
Dryer
Frames
Clamps
Assembly table
Cellophane supports
