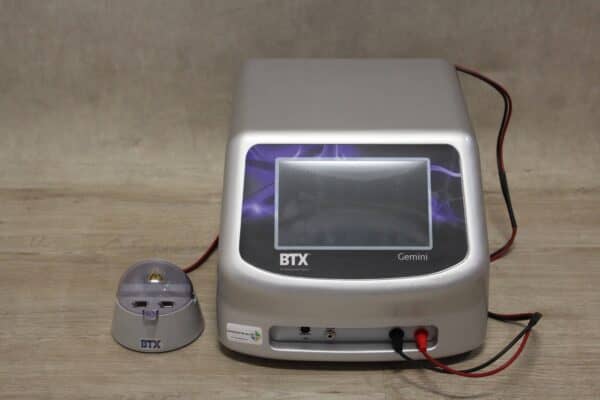

BTX Gemini X2 Twin Wave Elektroporator

 8.999,00 excl. btw

1 op voorraad

Artikelnummer: LM 17797 Categorie:
Beschrijving

Blokgolfpulsbereiken

Spanningsbereik: LV-modus 5 tot 500/1 V res, HV-modus 505 tot 3000/5 V res

Spanningsnauwkeurigheid: LV-modus 5%, HV-modus 5%

Pulslengtebereik: LV-modus 10 µs tot 999 µs/1 µs res, 1 ms tot 999 ms/1 ms res, HV-modus 10 µs tot 600 µs/1 µs

Meerdere pulsen: LV-modus 1 tot 120 (10 per monster), HV-modus 1 tot 36 (3 per monster), pulsinterval 0,1 s tot 10 sec

Capaciteit in µF: LV-modus 3775 µF, HV-modus 85 µF, spanningsverlies 20% belasting < 1 K Ω, 10% belasting > 1 K

Exponentiële vervalpulsbereiken

Spanningsbereik: LV-modus 5 tot 500/1 V res, HV-modus 505 tot 3000/5 V res

Spanningsnauwkeurigheid: LV-modus 5%, HV-modus 5%

Tijdconstante bereik: LV-modus 1 ms tot 5.158 S, HV-modus 0,5 ms tot 133.875 ms

Meerdere pulsen: meerdere pulsen 1 tot 12 (Rint <100 ohm), 1 tot 24 (Rint >100 ohm), pulsinterval 5 tot 30 sec

Capaciteit in µF: LV-modus 25 tot 3275 µF/25 µF res, HV-modus 10, 25, 35, 50, 60, 75, 85 µF

Interne weerstand (parallel met belasting): LV 25 tot 1575 Ω / 25 Ω res, HV 50 tot 1575 Ω / 25 Ω res

Monsterweerstand (belasting) Exponentieel verval of vierkant: LV-modus PL ≤ 100 ms, belasting ≥ 8-9 Ω, PL > 100 ms, belasting ≥ 100 Ω, HV-modusbelasting ≥ 40 Ω

Oplaadtijd: LV < 7 sec, HV < 4 sec

Monitoring: pulsspanning, breedte, droop% en monsterweerstand

Programmeerbaarheid: opslag van meer dan 1000 protocollen

Boogcontrole: Ja

Interlock-schakelaars: Ja

Pre-puls monster weerstandscontrole: Ja

Puls-overstroombeveiliging: Ja

PC-besturing: Ja

PC-communicatie: Ja

Lograpport: Ja

Bediening op afstand: Ja

Voetschakelaarbediening: Ja

Afmetingen (HxBxD): 324 x 286 x 216 mm

Gewicht: 7,3 kg

Extra informatie
Gewicht 7,3 kg
Garantie

6 maanden

Conditie

Zo goed als nieuw

Merk

Overige merken
