Interspec 308 spectrofotometer portable FTIR

 7.599,00 excl. btw

1 op voorraad

Artikelnummer: GW 12148 Categorie:

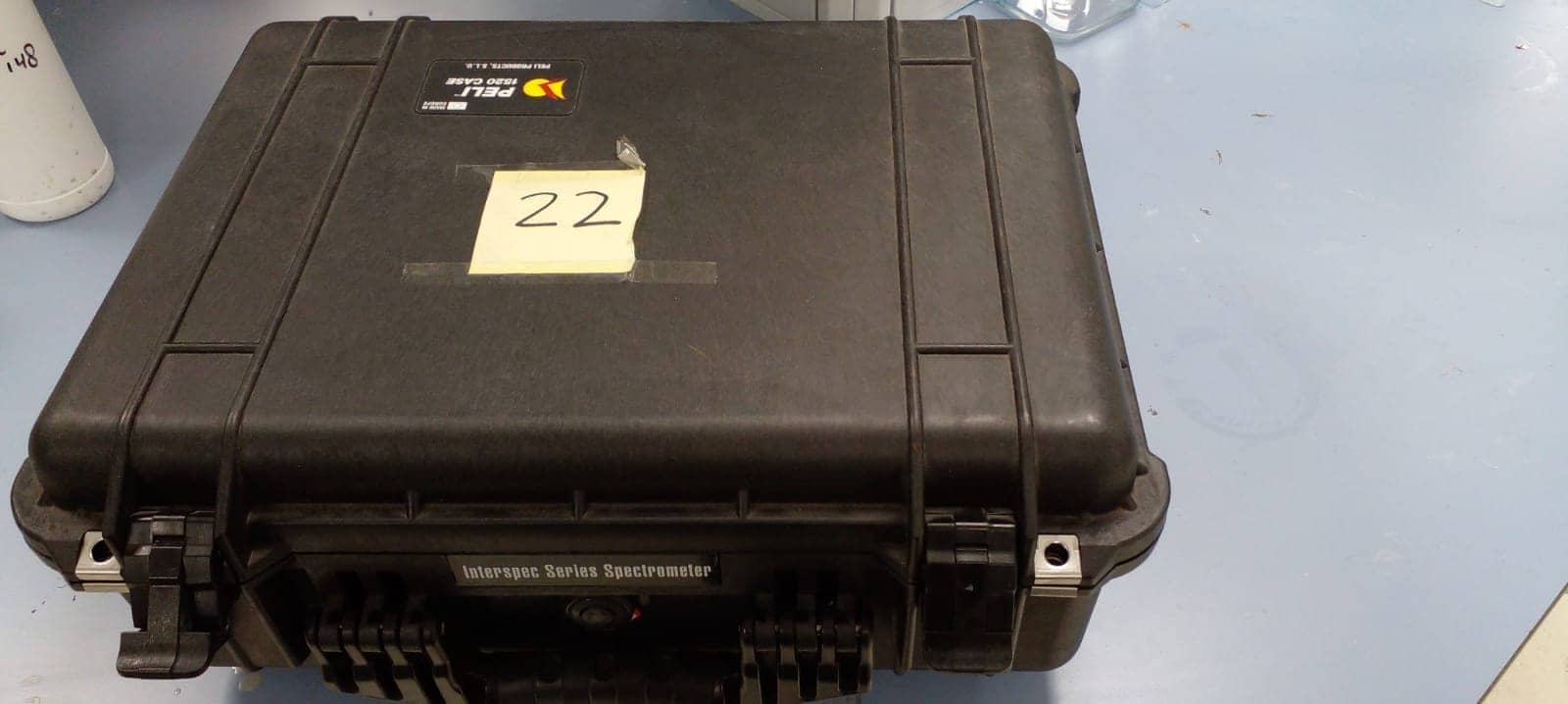

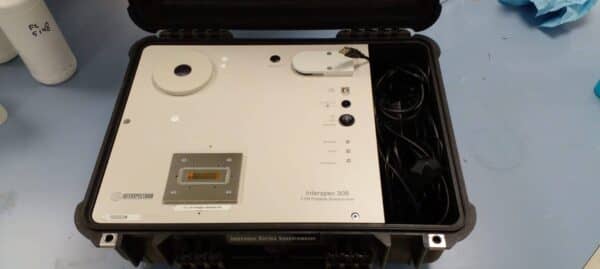

Portable spectrofotometer (FTIR) nieuw en ongebruikt, zonder doos. stevige koffer als ombouw welke voor veilig transport zorgt.

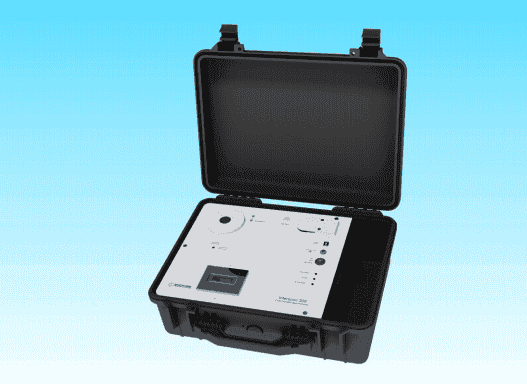

The Interspec 308 series of FTIR portable spectrometers represent a cost effective Fourier transform infrared portable spectrometers and employ a number of unique features that ensure high performance from a compact instrument.

The Interspec 308 measures just 49 X 39 X 20 cm and is regarded as one of compact and versatile infrared FTIR spectrophotometers. The design of the 308 is unique both in terms of optical design and the software and firmware designed specifically to significantly reduce overall analytical times.

The interferometer geometry is employing a new compact pendulum type roof mirrors optical system that eliminates many of the optical alignment problems found in conventional type optical interferometers.

The Interspec 308 design avoids the use of conventional corner cube optics and dynamic alignment. In practice this means that the instrument can be used in the research laboratory, in any university or college environment and if required, can also be used outside laboratory or in remote locations.

Specifications
Wavelength range, IR     7000 to 400 cm-1
Wavelength range, ZnSe     5000 to 600 cm-1
Resolution     2 cm-1
Interferometer     Pendulum type with roof mirrors
Beamsplitter, standard IR     Multicoated KBr
Beamsplitter, option IR     Multicoated ZnSe
Sample handling     ATR (1 or 3 bounce), transmission, reflection
Frequency reference     VCSEL laser
IR source     ceramic
Dessiccant possibility     Yes
Interface     USB
Data acquisition system     18 bit
Power     12 VDC, 30W
Dimensions     W49xD39xH20 cm
Weight     12 kg
Temp. environment     15 – 28 0C
Humidity environment     Best below 65%

Extra informatie

Gewicht 0,0 kg
Garantie

1 maand

Conditie

Zo goed als nieuw
